Filter Element Upgrades

Click to jump to a section:


Cut your filter usage and increase your uptime. (Yes, you read that correctly.)

Hy-Pro filter element upgrades deliver the highest capture and retention efficiencies (βx[c] ≥ 4000) through advanced DFE rated element media and the removal of particles, water and oxidation byproducts, making Hy-Pro elements the one component in your critical systems that saves you money.

Hy-Pro’s advanced media technology is at the heart of our performance. DFE filter element construction goes beyond the lab and is field tested and proven to deliver cleaner oil in industry’s toughest applications, all the time.



Hy-Pro_vs_competitor_element_particle_shedding_icon-2



We’ll prove it on your system

Together we help you achieve and maintain world class fluid cleanliness with solutions and strategies, sampling best practices, connected fluid monitoring, results interpretation, and condition based solutions all combined to give you cleaner oil and longer element life.



Hy-Pro_Rep_with_customer_oil_sample





Improved Sustainability

Implement Hy-Pro contamination solutions, strategies and best practices to dramatically improve your sustainability efforts. Hydraulic and lubricating oils are too often prematurely condemned because of contamination. Hy-Pro filter element upgrades have been proven to extend in-service oil life by 3-4 times by removing water, high particle load and oxidation by-products. Eliminate waste from premature oil and filter changes, and get the most out of your oil; restore demulsibility, protect sacrificial additives, eliminate varnish and acid, improve your sustainability and your bottom line at the same time.



Environmental-efficiency-and-cost-savings-increasing





Download the brochure



The world's largest selection of critical filter elements.

With over 500,000 filter element crosses, Hy-Pro’s Interchange offers the most extensive and comprehensive selection of critical hydraulic and lube oil filter elements anywhere. And it’s only growing larger. Each year, we catalog thousands of filter elements in our efforts to provide our customers with the best contamination solutions, service and support possible.



Element Upgrades for:

Pall

Schroeder

General Electric

Indufil

Stauff

CC Jensen

Cuno

MP Filtri

Hydac

Argo Hytos

Des Case

Hilco

PTI

Eaton

Rexroth

Filtroil

RRR

Parker

Internormen

Eppensteiner

Kaydon

Taisei Kogyo

Harvard

Mahle

Isopur

Yamashin

And More...

Industrial Grade Elements - Outperform the original.


DFE Rated Glass Media

βX[C] ≥ 4000 rated, high efficiency capture and retention synthetic media.

Find out more >

Hy-Pro_Dualglass_Filter_element

Water Removal Media

Glass media with special layers to adsorb and retain water.

Find out more >

Hy-Pro_HP8314_Water_Removal_media_close-up

Wire Mesh Media

Coarse media for high viscosity fluids.

Hy-Pro-Wire-Mesh-Filter-Media

NSD Non-Spark Discharge Media

DFE Rated glass media optimized to prevent element sparking while maintaining βX[C] ≥ 4000 efficiencies.

Find out more >

Hy-Pro-NSD-Non-Spark-Discharge-Filter-Media

VTM Media

High efficiency particulate, insoluble oxidation by-product (varnish) and water removal media.

Hy-Pro-VTM-Media-Filter-Element

ICB Resin

Specialty media for removing oxidation by-products and acids from turbine oils, compressor oils, and other fluids.

Find out more >

ICB Resin Media Filter Element Upgrades

Dynafuzz Stainless Fiber Media

Stainless steel media for fire resistant and highly corrosive fluids.

Find out more >

Hy-Pro-Dynafuzz-Filter-Element-Media

Coalesce and Separator Media

Media used to separate water from turbine oils and diesel fuels.

Hy-Pro-Coalesce-and-Separator-Filter-Element-Media


How clean is my oil?

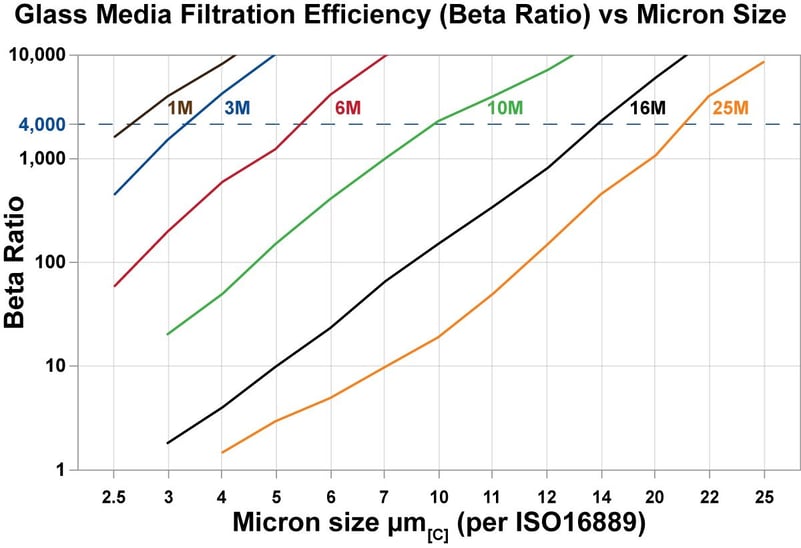

Hy-Pro provides the highest single pass capture and retention efficiency.

Hy-Pro DFE rated filter element upgrades deliver industry’s lowest in-service ISO codes before and after the filter. Rated to βX[C] ≥ 4000, Hy-Pro elements ensure your fluids are always clean and always in spec.



Hy-Pro-Media-Efficiency-Graph



It's all about ISO Codes.

What really matters in critical hydraulic, lube and fuel applications is actual in-service oil cleanliness (ISO codes). Proven in both the lab and real world applications, Hy-Pro filter elements deliver the highest single pass efficiency, translating to remarkably lower in-service ISO Codes than competitors.

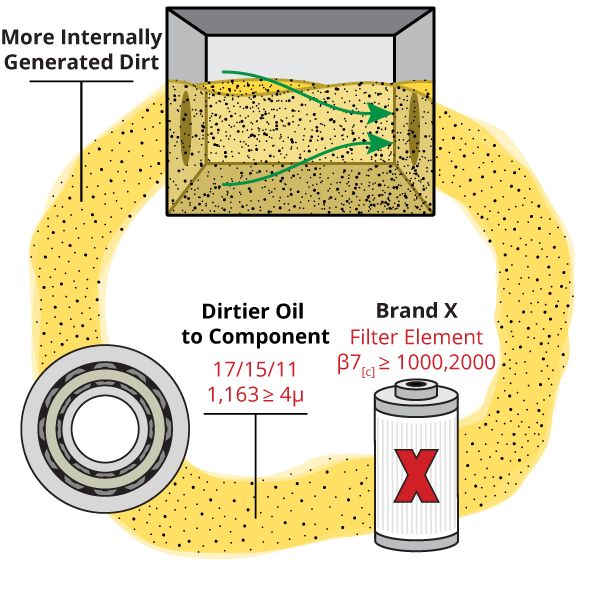

Competitor Single Pass Efficiency

single-pass-efficiency-competitor

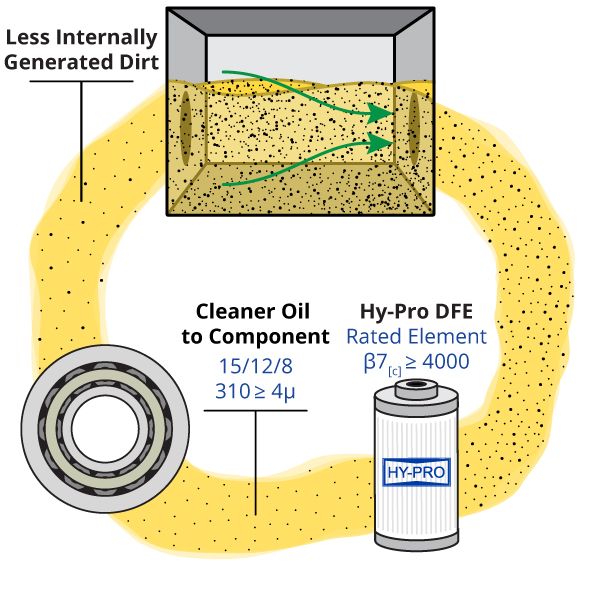

Hy-Pro Single Pass Efficiency

single-pass-efficiency-Hy-Pro





How long will my filters last?

Dirt makes dirt.

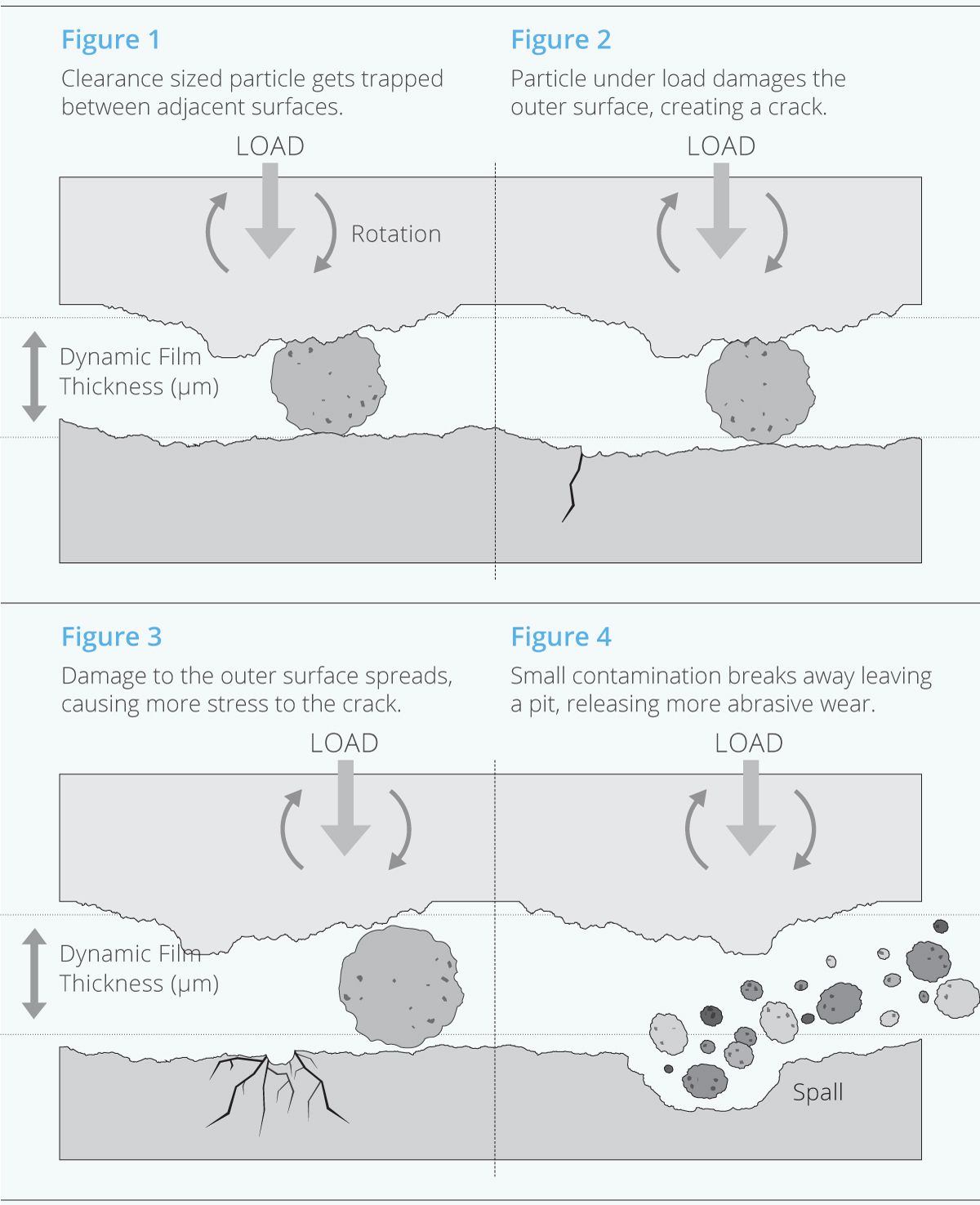

The worst contamination source in properly maintained hydraulic and lube systems is internally generated wear. Small, clearance sized particles including 4μ[C], 6μ[C], and smaller are the most destructive. As these particles pass through your system, they wreak havoc on your sensitive components, generating more dirt along the way. By removing these particles, you ensure your equipment and your filters last up to and even beyond their expected lifespans. The process below demonstrates one way internally generated contaminants are formed.



Internally-Generated-Contaminants-Spall



Hy-Pro Element Upgrades last longer once a new fluid cleanliness equilibrium is achieved.

Hy-Pro elements achieve and maintain lower actual in-service fluid cleanliness (ISO) codes utilizing DFE media technology to capture and retain more contaminants. By maintaining a cleaner system and greatly reducing the rate of internally generated wear, Hy-Pro elements provide incredible efficiency over consistently long lifespans.

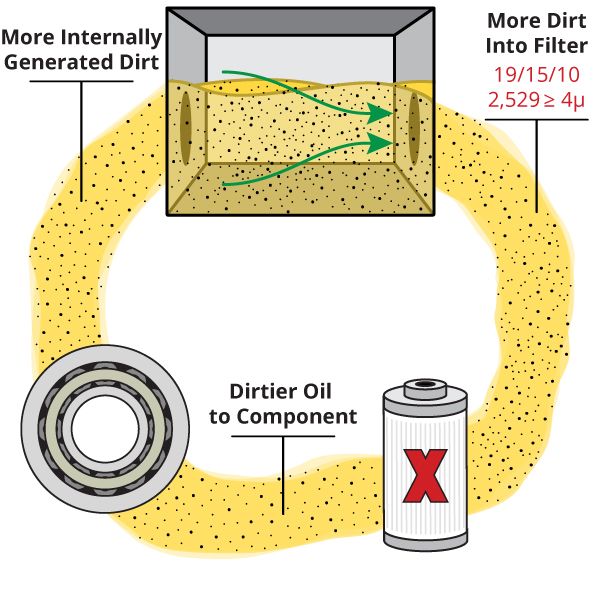

Competitor Equilibrium Cycle

direct-equilibrium-cycle-competitor

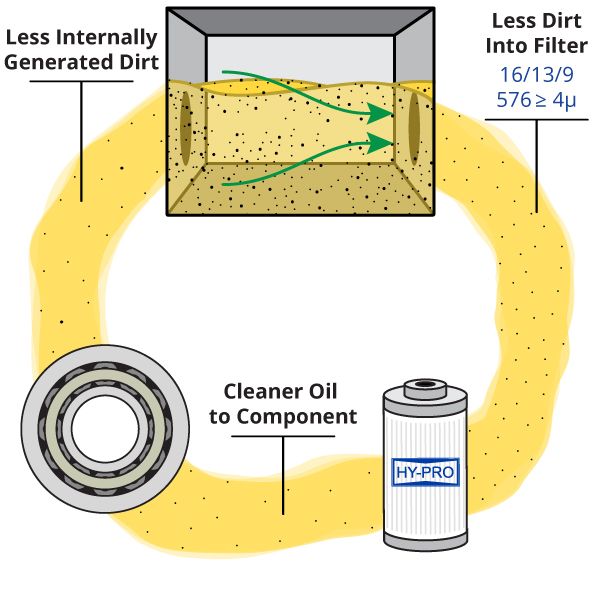

Hy-Pro Equlibrium Cycle

direct-equilibrium-cycle-Hy-Pro-1
