DFH High Pressure Duplex Filter Assembly

Help Ensure Continuous Operation with the DFH High Pressure Duplex Filter Assembly

The DFH High Pressure Duplex Filter Assembly by Hy-Pro is engineered to provide uninterrupted filtration in critical systems requiring high-pressure performance. Designed for applications such as turbine lube oil, hydrogen seal oil, and bearing lube oil systems, the DFH series offers a maximum operating pressure of 3600 psi (248 bar). Its innovative design allows for easy element replacement without system shutdown, ensuring continuous operation in hydraulic, gearbox, and servo systems. With advanced DFE-rated media options, the DFH assembly delivers superior particulate and water removal, enhancing system reliability and extending equipment life.

Max Operating Pressure: 3600 psi (248 bar)



Download Brochure

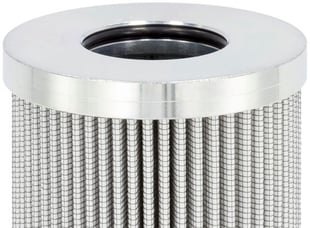

Elements that go beyond industry standard.

DFE rated advanced media technologies provide the highest level of particulate capture and retention capabilities so your equipment operates unimpeded by contamination. With media options down to β3[C] ≥ 4000, + water absorption, you get the perfect element for your application, every time.

Two positions, one result.

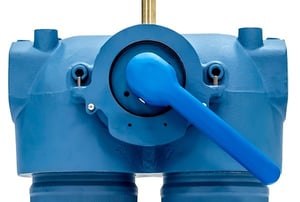

DFH housings provide unmatched in-line filtration with incredible ease of use. With a squeeze of the trigger and turn of the wrist, you’ll introduce a new element to your fluid while simultaneously valving the used element out of service to easily change and replace, all while your system continues operating at full capacity.

All duplexes are not created equal.

Air in any lube system can quickly cause failure and force you to take your system down for maintenance. DFN assemblies utilize internal equalization and external vent ports to automatically push oil into and purge air out from the unused housing without any added effort.
