F8 Medium Pressure Filter High Flow Filter Assembly

Optimize fluid cleanliness with the F8 Medium Pressure Filter Assembly.

The Hy-Pro F8 Medium Pressure Filter Assembly is engineered for high-viscosity lubricating fluids, high-flow hydraulic systems, and heavily contaminated fuel applications. With a maximum operating pressure of 500 psi (34.5 bar), the F8 series offers robust performance in demanding environments. Its top-loading design ensures easy and clean access during servicing, minimizing downtime. Designed as a drop-in replacement for industry-standard 8300/8310/8314 filter assemblies, the F8 provides flexibility with various DFE-rated media options, including water-absorbing and high-efficiency particulate removal configurations. Upgrade your existing filter elements with the HP107 series to benefit from an integral bypass valve with every filter, setting a new standard in filtration efficiency.





Download Brochure
F8_107

Filtration starts with the filter.

Advanced DFE rated filter elements deliver lower operating ISO Codes with high efficiency particulate removal and retention efficiency. With a range of media options down to β3[c] > 4000 + water absorbing options, you get the perfect element for your application, every time.

Minimize the mess.

The top loading housing on F8 filter assemblies provide easy and clean access when servicing or changing the element. Accessing the element is as simple as removing the housing cover, meaning you have no heavy bowl to lift and can get back in operation more quickly than ever.
F8
HP107L18

Setting the new (industry) standard.

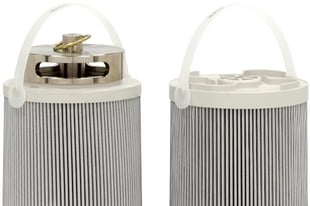

Designed as a drop-in replacement for industry standard 8300 series filter housings, only the F8 from Hy-Pro gives you the flexibility to choose from numerous DFE rated filter arrangements. Even upgrade your existing 83** series filter elements with the HP107 series to
get a new integral bypass valve with every filter.
