Dimensions are approximations taken from base model and will vary according to options chosen.
Connections
Inlet
FCL05-FCL5: 1” male JIC (37° flare)
FCL10: 1.25” male JIC (37° flare)
FCL20-FCL30: 1.5” male JIC (37° flare)
Outlet
FCL05-FCL10: 1” male JIC (37° flare)
FCL20-FCL30: 1.25” male JIC (37° flare)
Hoses
FCL05-FCL5: 1” x 10 ft (2.4 m)
FCL10: 1.25” x 10 ft (2.4 m) suction
1” x 10 ft (2.4 m) discharge
FCL20-FCL30: 1.5” x 10 ft (2.4 m) suction
1.25” x 10 ft (2.4 m) discharge
Operating Temperature
Fluid Temperature
30°F to 225°F
(0°C to 105°C)
Ambient Temperature
-4°F to 104°F
(-20C to 40C)
Materials of Construction
Housing
Carbon steel with industrial coating
Hoses
Reinforced synthetic
Wands
Stainless steel
Electric Motor
TEFC, 56-215 frame
0.5-3 hp, 1450-1750 RPM, see Appendix for amp ratings.
Motor Starter
MSP (motor starter/protector) in an IP65, aluminum enclosure with short circuit and overload protection.
Electric Connection
Voltages 230 V ac and under, single phase: 35’ (11 m) retractable cord reel included. NEMA 5-15 plug installed on Power Option 12.
Voltages over 230 V ac: 35’ (11 m) loose cord included.
Pump
Cast iron, positive displacement gear pump with internal relief. Maximum pressure on pump inlet 15 psi (1 bar). Consult factory for higher pressures.
Pump Bypass
Full bypass at 150 psi (10 bar)
10 GPM pump is rated for intermittent duty only at pressures above 100 psi. Continual operation with dual clogged filters resulting in operating pressures over 100 psi will reduce pump life and/or cause premature pump failure.
Pneumatic Option Air Consumption
~40 cfm @ 80 psi3
35’ (11 m) retractable air hose included when pneumatic option selected. Replaces 35’ (11m) electric cord reel.
Air consumption values are estimated maximums and will vary with regulator setting.
Some additional information in one line
A
G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000
M
G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000
β3[C] ≥ 4000 particulate, insoluble oxidation by-product and water removal media
Replacement Elements
Filter Sizing Guidelines
Filter assembly clean element ΔP after actual viscosity correction should not exceed 10% of filter assembly bypass setting. See filter assembly sizing guidelines & examples. For applications with extreme cold start condition contact Hy-Pro for sizing recommendations.

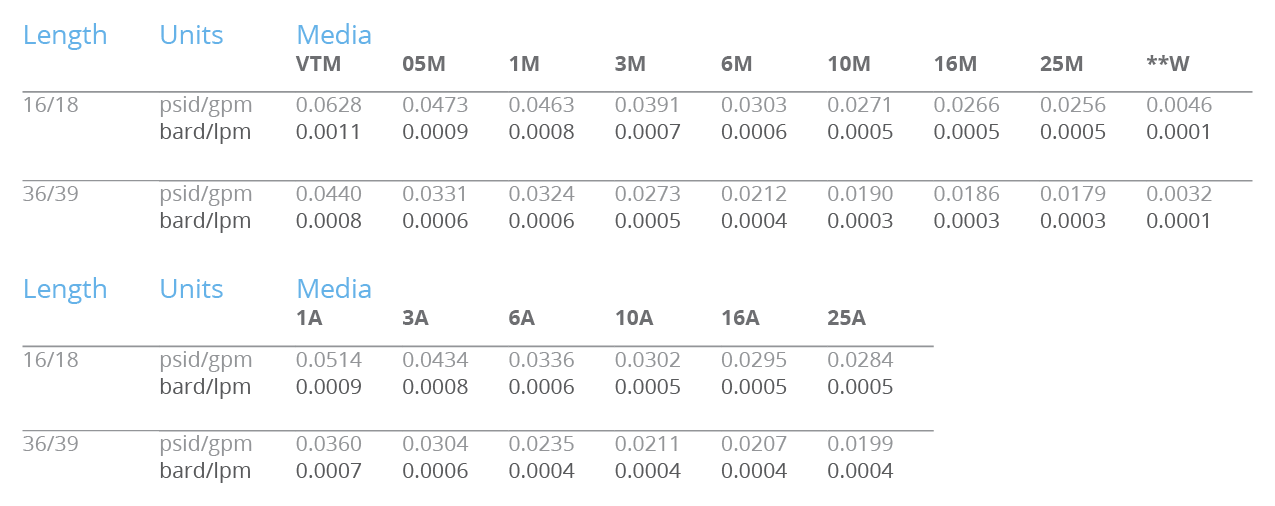

FCL ΔP Factor
Viscosity
2-5000 cSt
When sized and installed appropriately. Contact factory for applications above 800 cSt for sizing requirements.
Fluid Compatibility
Petroleum and mineral based fluids, #2 diesel fuels (standard). For specified synthetics contact factory for compatibility with fluorocarbon seal option. For phosphate ester (P9) or skydrol fluid (S9) compatibility select fluid compatibility from special options.
Hazardous Environment Options
Select pneumatic powered unit (Power Option 00) or explosion proof NEC Article 501, Class 1, Division 1, Group C+D. Call for IEC, Atex or other requirements. If Explosion Proof option (X--) selected, no electrical cord or cord reel will be included.
