SVR® Soluble Varnish Removal System

A complete recovery and maintenance solution for turbine lubricants. Soluble Varnish Removal System targets and removes the dissolved varnish pre-cursors which are the cause of varnish. By removing these waste oxidation by-products, you restore the oils original solvency properties which forces any solid varnish deposits to be dissolved back into the oil where they are removed permanently.





Stop varnish related fail-to-starts and unit trips.

Soluble Varnish Removal System attacks the source of the problem on a molecular level, removing the oxidation by-products that form varnish deposits. Soluble Varnish Removal System reverses the chemical process of varnish deposit formation by restoring oil health removing varnish throughout the system and in critical components so your servo valves operate more efficiently than ever.

Advanced media technologies.

Ion-Exchange Filters’ patented ion-exchange resin technology removes soluble oxidation by-products and restores demulsibility during normal turbine operation without damaging additive chemistry. With the most advanced media, Soluble Varnish Removal System has 4x more capacity than competing varnish removal systems.


SVR Lab

Remove acid.

Acid in turbine oil is by-product of oxidation, a leading pre-cursor to varnish formation. Soluble Varnish Removal System removes acid improving oxidative stability, slowing oxidation rate and dramatically reducing a source of varnish production.

Attack the problem, not the symptoms.

Turbine oil is condemned when anti-oxidant (AO) additive levels deplete to 20% of new. A dedicated Soluble Varnish Removal System performs in parallel with AO additives to slow depletion to drastically extend the life of your oil. On top of being the ultimate varnish deposit recovery system, Soluble Varnish Removal System restores and protects oil health and actively prevents new varnish from forming. Once varnish is under control the benefit of longer oil life can be fully realized.

SVR Lab

Work with the experts.

With Soluble Varnish Removal System, you’ll work alongside industry experts and receive comprehensive oil analysis and results interpretation to provide the best solution to extend your fluid life and make varnish vanish, for good.

Endless applications.

In addition to a range of options including the PM-1 Particle Monitor, explosion proof models, a range of power options, even stainless steel vessels, Soluble Varnish Removal System can be completely customized to provide the perfect solution for your application.

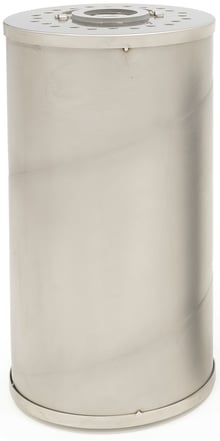

ICB Advanced Resin Technology.

Turbine oil varnish deposits form when oil becomes saturated with oxidation by-products from fluid breakdown. Ion-Exchange Filters goes where other technologies can’t to remove polar oxides on a molecular level. When varnish deposits are affecting servo valve response time, that means the oil is saturated. Soluble Varnish Removal System addresses this by removing dissolved oxidation by-products and restoring the oil’s solubility. The restored oil dissolves deposits back into solution which can then be removed by the Soluble Varnish Removal System. The process repeats during recovery until the entire system and the oil are varnish free. That’s when you see a white patch. Once the varnish is gone, Soluble Varnish Removal System continues to work by removing by-products as they form to prevent future deposits. Ion-Exchange Filters also slows anti-oxidant additive depletion to boost oil life. Ion-Exchange Filters is the only technology that treats the dissolved varnish during normal turbine operation to prevent varnish from forming.

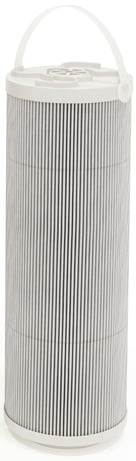

HP107 for ISO Code Management.

DFE rated advanced media technologies provide the highest level of particulate capture and retention so your equipment operates unimpeded by contamination. The coreless filter element in every Soluble Varnish Removal System delivers remarkably low ISO Codes, taking the dirt load off of critical system lube and hydraulic control filter elements (IGV, pump discharge). In addition to particulate control, the HP107 with VTM media also removes  the insoluble oxidation by-products that are suspended in the oil, working hand-in-hand with the Ionic Charged Bonding media to rapidly reduce varnish potential and restore the health of your oil. The element is oversized to perform over a long element lifespan and to ensure low environmental and bottom line impact. To top it off, the HP107 element comes standard with an integral zero leak bypass so with every filter change, you get a new bypass along with peace of mind.


Top View-3

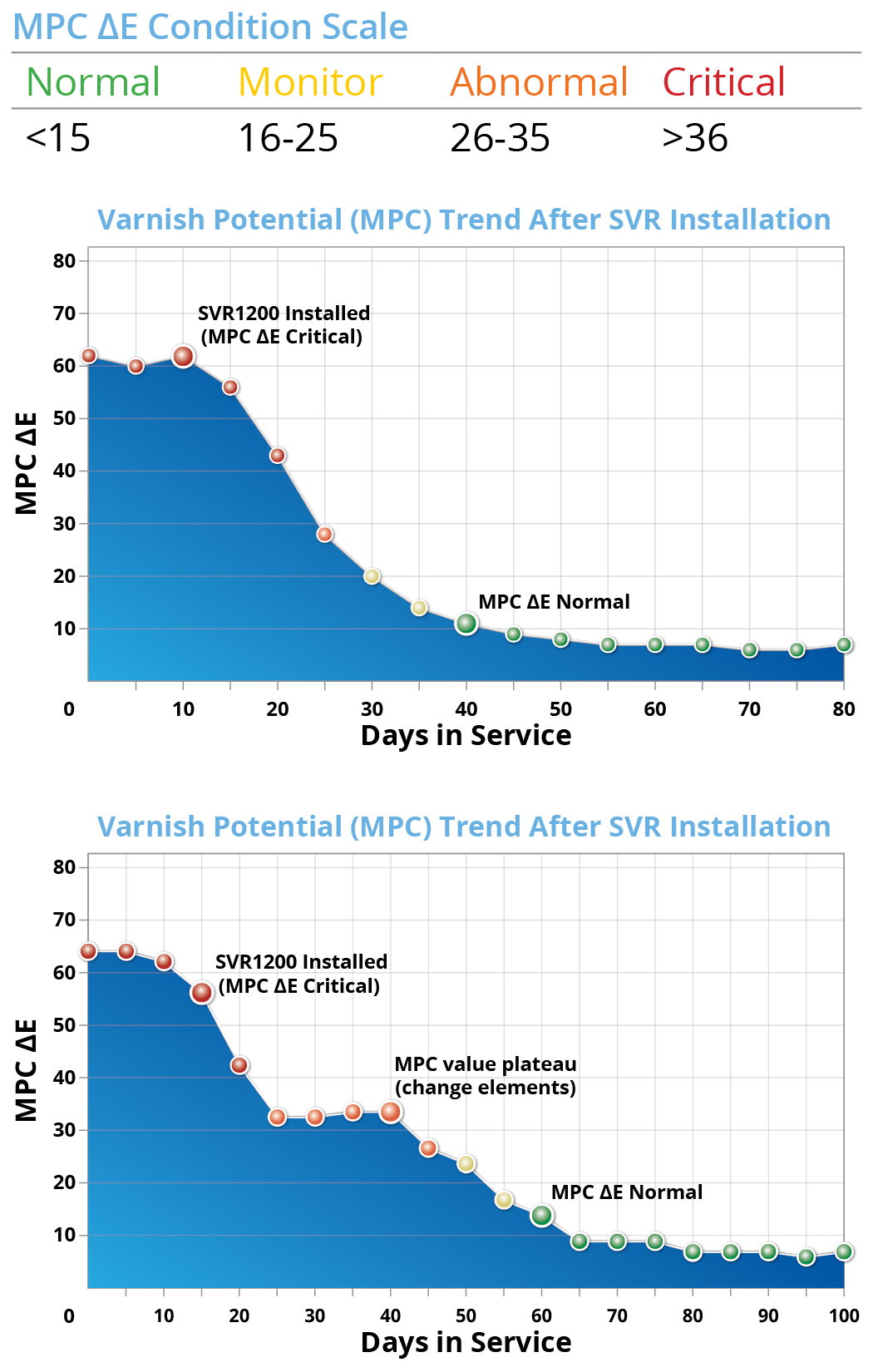

Figure 1 depicts SVR1200 on a 7FA gas turbine with critically high varnish potential (MPC ∆E) experiencing slow servo valve response time and sticking. SVR had an immediate impact on the 6,200 gallon / 24,000 liter lube reservoir. Within 45 days MPC values were reduced to condition normal.

Starting RULER was 5 meaning only 5% AO remained in the oil, below condemning level. By installing SVR before a fluid change, all varnish deposits were removed before the oil change which allowed new oil to be added to a clean reservoir. If not for the deposit removal, AO in the new oil could have immediately depleted to as low as 65%.

Figure 2 is the restoration of a combustion turbine with heavy varnish deposits where MPC varnish potential dropped to 35 after SVR installation. 40 days into service, the ICB elements were changed as they were fully loaded with oxidation by-product. Once changed, MPC dropped to single digits. In the case of a heavily varnished turbine, 2 to 3 sets of ICB elements might be required to achieve condition normal. Once MPC drops to single digits, the ICB elements would normally be replaced annually to maintain the lubricant in optimal condition.

Note: Graph lines have been smoothed to demonstrate long term performance and MPC values will fluctuate as varnish is drawn from the system back into solution and subsequently removed from the system by the SVR.

The Proven Varnish Solution
