PFH62 High Pressure In-Line Filter Assemblies

Hy-Pro’s PFH62 pressure filters are designed to protect sensitive components in hydraulic circuits. Install the series upstream of specific components or directly after the pressure pump to minimize risk of failure and costly system downtime. Ideal for use as a power unit pump discharge filter and to protect components that are sensitive to particulate contamination and require clean pressurized fluid for reliable operation, such as servo valves.

Max Operating Pressure: 6,600 psi (455 bar)



Download Brochure

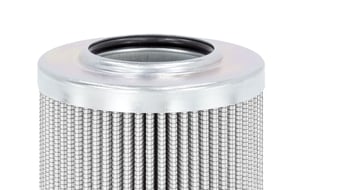

PFH62_element_endcap

Dynamic Filter Efficiency

Hydraulic applications see dynamic flow changes on a regular basis. Dynamic Filter Efficiency testing takes the ISO16889 Multi-Pass testing even further with variable flow shifts to ensure your filter elements stand up to real world conditions and maintain the highest capture and retention rates in the industry.

Industrial duty.

Standard mounting holes for an optional mounting bracket, a variety of indicator options, head-up or inverted mounting options, and side-in / end-out “L-Head” port orientation or a sub-plate manifold mount option make the PFH62 the ideal choice for heavy duty hydraulic filtration.

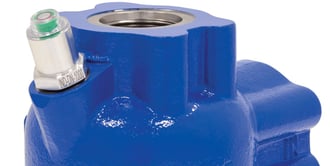

PFH62_housing_indicator

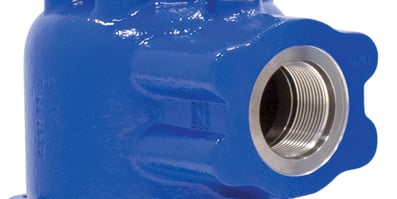

PFH62_housing_port

Unique applications.

With available nickel plating, the PFH62 is an ideal choice for rough duty, high water contamination applications. Media options include wire mesh, water removal, and Dualglass to address even the most unique contamination. A reverse flow check valve option enables usage in reversing hydrostatic drive systems.

Minimize the mess.

The top loading housing on PFH62 filter assemblies provide easy and clean access when servicing or changing the element. Accessing the element is as simple as removing the housing cover, meaning you have no heavy bowl to lift and can get back in operation quicker than ever.

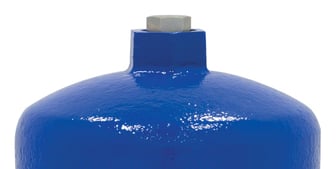

PFH62_bowl_drain

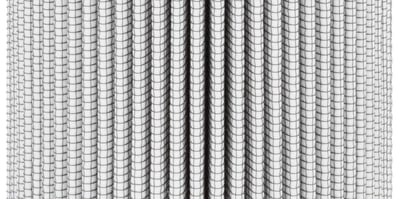

PFH62_element_media

Extend the life of your element.

Unique internal flow paths provide low resistance to flow, resulting in a low housing pressure drop. Hy-Pro’s advanced filter media delivers lower operating ISO Codes to eliminate internally generated contamination meaning your filter will have an incredibly long service life to protect your sensitive components better than ever.

The ideal choice for hydraulics.

Use the PFH62 as the main high pressure filter(s) in a hydraulic system or upstream of sensitive components as a pilot filter to protect your valves and actuators. The PFH series are engineered to provide lower operating ISO Codes than what is required for compliance with hydraulic component manufacturers’ warranties.

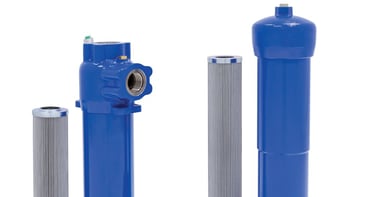

PFH62_housings_close_up
