TF4 In-Tank Filter Assembly

Ideal for installation on the return line to remove contaminant ingested or generated by the system

Max Operating Pressure: 100 psi (6.9 bar)



Download Brochure
Operating Temperature

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 140°F

(-20C to 60C)

Operating Pressure

100 psi (6.9 bar) maximum

Pressure Switch Trigger

22 psi (1.5 bar)

Element Collapse Rating

HP4CL9

150 psid (10.3 bard)

HPKL9

290 psid (20 bard)

Integral Bypass Setting

25 psid (1.7 bard)

Materials of Construction

Head

Cast Aluminum

Bowl

Polyammide
Media Description

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

Fluid Compatibility

Petroleum and mineral based fluids (standard). For polyol ester, phosphate ester, and other specified synthetic fluids use fluorocarbon seal option or contact factory.

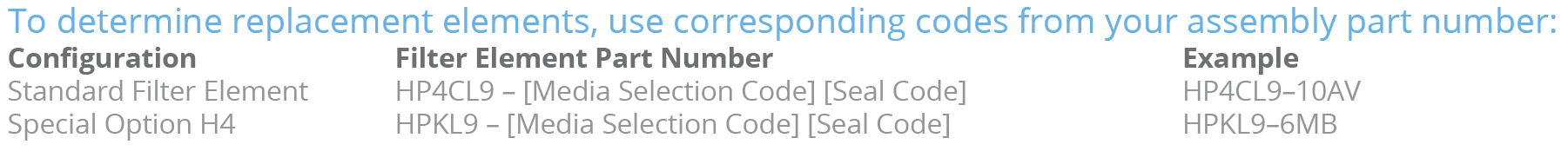

Replacement Elements
TF4 replacement elements
Max flow rates and ΔP factors assume υ = 150 SUS, 32 cSt. See filter assembly sizing guideline for viscosity conversion formula on page 22 for viscosity change.

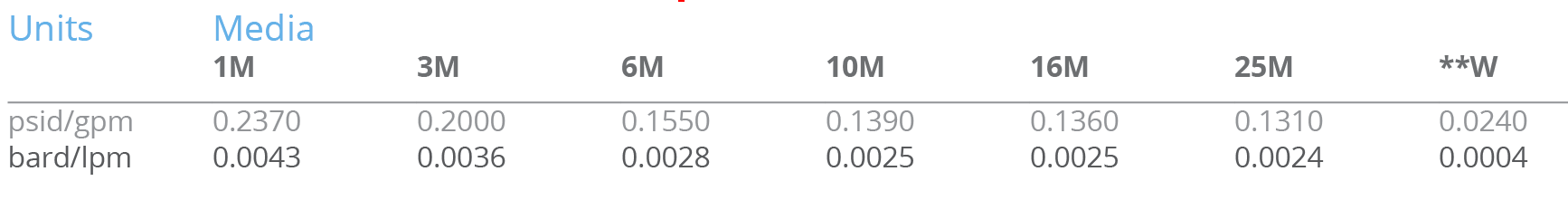

ΔP Factors
TF4 ΔP factors
Filter Sizing Chart
TF4 filter sizing chart
