CFU Compact Filter Unit Specifications

CFU Compact Filter Unit

Bigger isn’t always better. The Compact Filter Unit provides you with the best filtration at a size you can take anywhere. Tried and true, the CFU is the ultimate filtration system in power and mobility. And with easy to change Spin-On elements or heavy duty MF3s, you can rest easy knowing your filtration will always exceed your expectations.

Overview
Specs

Dimensions

Height

21” (54 cm)

Length

21” (54 cm)

Width

12” (31 cm)

Weight

47 lbs (21 kg)

Dimensions are approximations taken from base model and will vary according to options chosen.

Connections

Inlet

¾” male JIC with 37° flare

Outlet

½” male JIC with 37° flare

Hoses

¾” x 8 ft (2.4 m) suction female JIC or BSPP swivel

½” x 8 ft (2.4 m) discharge female JIC or BSPP swivel

Operating Temperature

Fluid Temperature

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 104°F

(-20C to 40C)

MATERIALS OF CONSTRUCTION

Frame

Powder coated aluminum

Filter Assembly

Aluminum head

Hoses

Reinforced synthetic

Wands

Stainless steel

Element Bypass Valve

Nylon

Electric Motor

TEFC, 56C frame

7/16 hp, 1450-1750 RPM

Electric Connection

15’ (4.6 m) cord included installed on machine.²

Selecting pneumatic power option removes electric cord.

Pump

Positive displacement gear pump with relief valve. Maximum pressure on pump inlet 15 psi (1 bar). Consult factory for higher pressures.

Pneumatic Option Air Consumption

~15 cfm @ 60 psi³

Air consumption values are estimated maximums and will vary with regulator setting.

Media Descriptions

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx_[C]≥ 4000

W

Stainless steel wire mesh media βx_[C]≥ 2

A

G8 Dualglass high performance media combined with water removal scrim. βx_[C] ≥ 4000

Viscosity

Max viscosity rated for 200 cSt.⁴

When sized and installed appropriately. Contact factor for applications above 200 cSt for sizing requirements.

Fluid Compatibility

Petroleum and mineral based fluids (standard). For specified synthetics contact factory for compatibility with fluorocarbon seal option. For phosphate ester (P9) or skydrol fluid (S9) compatibility select fluid compatibility from special options.

Hazardous Environment Options

Select pneumatic powered unit (Power Option 00) or explosion proof NEC Article 501, Class 1, Division 1, Group C+D. Call for IEC, Atex or other requirements. If Explosion Proof option (X--) selected, no electrical cord will be included.

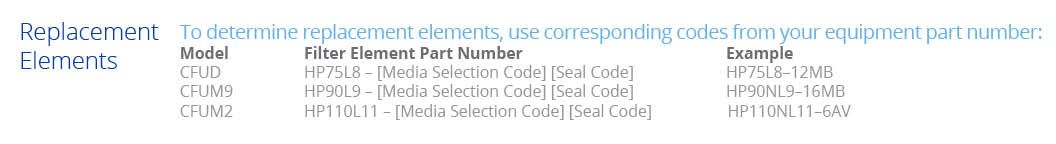

Replacement Elements

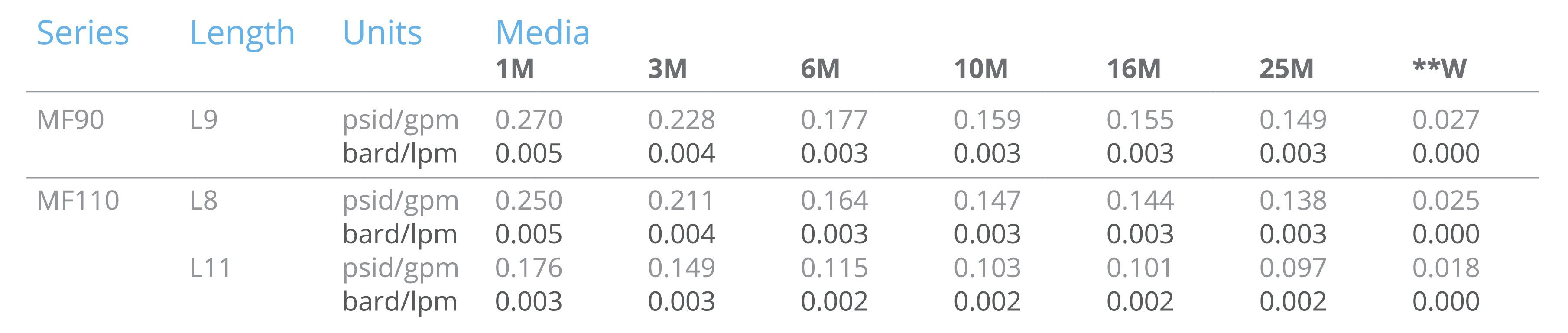

Filter assembly clean element ΔP after actual viscosity correction should not exceed 10% of filter assembly bypass setting. For applications with extreme cold start condition contact Hy-Pro for sizing recommendations.
