FSW Wall Mounted Filtration Systems Specifications

FSW Wall Mounted Filtration Systems

A compact, dedicated off-line contamination solution ideal for small reservoirs, gearboxes and diesel engine crankcase conditioning. Element media options for every application including particulate removal, water absorption, varnish and acid removal.

Compact and compatible, the FSW is the perfect off-line filtration system for removing contamination from your systems and making sure they remain in peak operating condition.

Overview
Specs

Dimensions

Height

22" (56 cm)

Width

22" (56 cm)

Depth

13" (33 cm)

Weight

138 lbs (63 kg)

Dimensions are approximations taken from base model and will vary according to options chosen.

Mounting & Clearance

Contact factory for detailed system and mounting dimensions.

Connections

Inlet

¾" male JIC 37° flare

Outlet

¾" male JIC 37° flare

Operating Temperature

ICB

86°F to 176°F

(30°C to 80°C)

Dualglass, Stainless wire mesh, VTM

30°F to 225°F

(0°C to 105°C)

Ambient Temperature

-4°F to 104°F

(-20C to 40C)

Materials of Construction

Vessel

Carbon steel with industrial coating

Electric Motor

TEFC, 56 frame

½-1 hp, 1450-1750 RPM

Motor Starter

Motor starter with overload protection.

PUmp

Cast iron, positive displacement gear pump with internal relief. Maximum pressure on pump inlet 15 psi (1 bar). Consult factory for higher pressures.

Pump Bypass

Full bypass at 150 psi (10 bar)

Pneumatic Option Air Consumption

~15 cfm @ 60 psi

Air consumption values are estimated maximums and will vary with regulator setting.

Some additional information in one line

A

G8 Dualglass high performance media combined with water removal scrim. βx[C] ≥ 4000

M

G8 Dualglass, our latest generation of DFE rated, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000

W

Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2)

VTM

β3[C] ≥ 4000 particulate, insoluble oxidation by-product and water removal media

ICB®

ICB^® Ion-Exchange resin media for molecular removal of acids, varnish deposits, soluble oxidation by-products and dissolved metal ions. Contact factory for fluid specification.

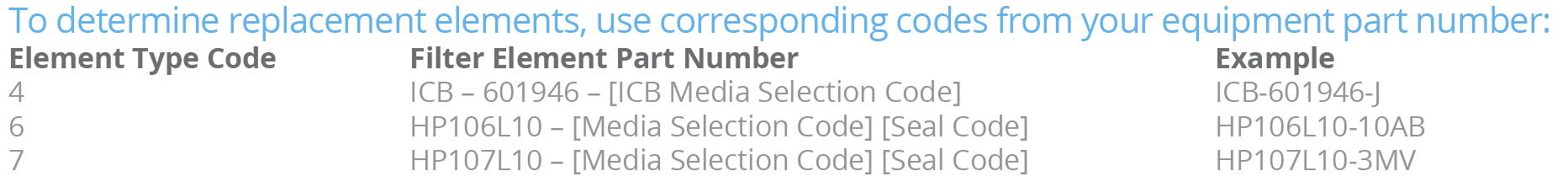

Replacement Elements

Filter Sizing Guidelines

Filter assembly clean element ΔP after actual viscosity correction should not exceed 10% of filter assembly bypass setting. See filter assembly sizing guidelines & examples. For applications with extreme cold start condition contact Hy-Pro for sizing recommendations.

FSW ΔP Factor

viscosity

10-5000 cSt

When sized and installed appropriately. Contact factory for applications above 800 cSt for sizing requirements.

Fluid Compatibility

Petroleum and mineral based fluids, #2 diesel fuels (standard). For specified synthetics contact factory for compatibility with fluorocarbon seal option. For phosphate ester (P9) or skydrol fluid (S9) compatibility select fluid compatibility from special options.

Hazardous Environment Options

Select pneumatic powered unit (Power Option 00) or explosion proof NEC Article 501, Class 1, Division 1, Group C+D. Call for IEC, Atex or other requirements. If Explosion Proof option (X--) selected, no electrical cord or cord reel will be included.
